Your Single-Source Partner for Electrical Insulation Testing
ELTEK Labs' customer base spans companies large and small, domestic and international — from manufacturers of individual materials to builders of complex machinery. We work collaboratively to acquire the data needed to make technically sound decisions.

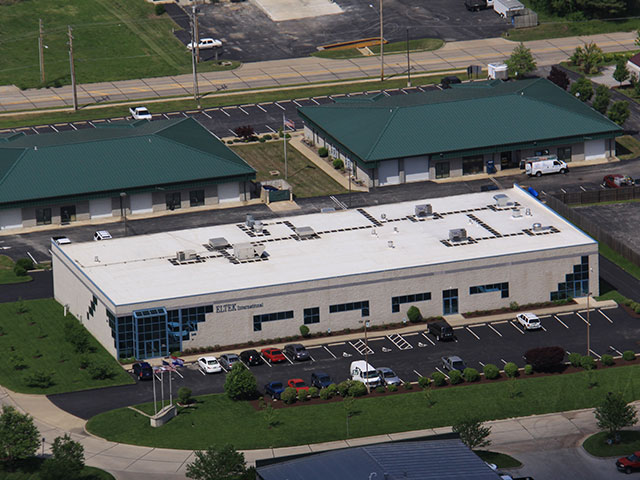

Our facility consists of seven linked laboratories providing a single-source service: short-term performance, long-term thermal aging, compatibility, EIS thermal life, special projects, fabrication, and calibration verification.
Explore Lab Capabilities →
Full-Spectrum Testing Capabilities
Electrical Testing
Up to 150kV AC / 100kV DC. Dissipation factor, dielectric breakdown, insulation resistance, impulse testing, voltage endurance, and surface tracking.
Thermal Exposures
100+ laboratory ovens up to 350°C. Cold chambers down to -30°C. Three oven sizes for wide-ranging test object dimensions.
Compatibility Testing
CCT / Sealed Tube testing. Immersion in oils, water, refrigerants, gases and vapor. More CCT testing performed than all other labs worldwide combined.
Flammability Testing
Open flame (vertical, horizontal, needle) and non-flame sources (hot wire, glow wire). Tested per ASTM, IEC, ISO, NEMA, and UL standards.
Physical Properties
Tensile, flexural, compressive, and impact strength. Deformation under load, water absorption, and hardness testing per ASTM and ISO standards.
Humidity & Condensation
Five chambers capable of up to 100% RH with visible condensation. Interior dimensions up to 1500mm wide for large test objects.
ISO/IEC 17025 Quality Management

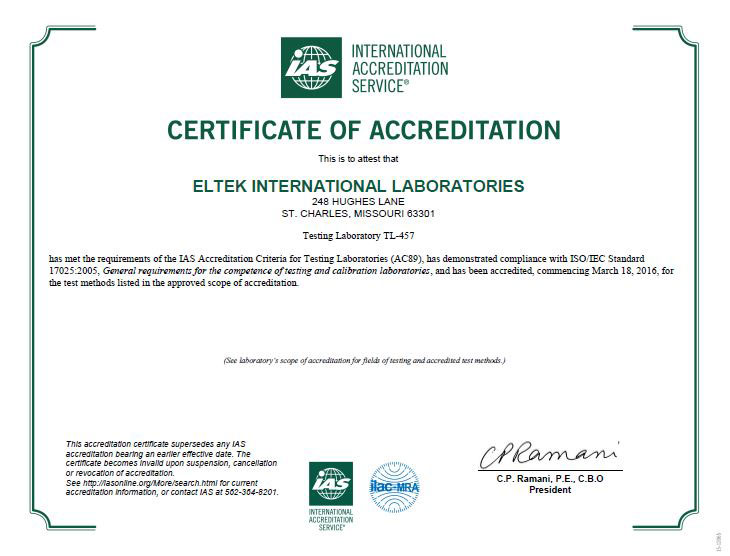

ELTEK Labs complies with ISO/IEC 17025 as the foundation of our Quality Management System and laboratory operations. Our facility is accredited by the International Accreditation Service (IAS) as Testing Laboratory TL-457.
ELTEK is a Third Party Testing Laboratory for internationally recognized Certifying Bodies and remains an active participant on technical committees developing new requirements for safety and performance.
Ready to Start a Project?
Whether you need material evaluation, EIS testing, compatibility analysis, or certification support — ELTEK Labs has the expertise and the accreditation to get it done right.
Lab Capabilities
ELTEK Labs can evaluate materials, insulation systems, and end products for mechanical, electrical, and compatibility properties across a wide range of environments. If you don't see what you need, contact us.
Electrical Testing
High-voltage capability from low AC/DC up to 150kV, impulse, and endurance testing.
- — Dissipation factor / capacitance
- — Dielectric breakdown
- — Insulation resistance (surface / volume)
- — Impulse: 1.2/50µs up to 48 kV
- — Voltage endurance / Corona resistance
- — Surface tracking & CTI
- — Testing in water, oils, refrigerants, gases
- — Dust-fog / inclined plane tracking
Thermal Exposures
Short-term and long-term thermal conditioning with 100+ calibrated ovens and cold chambers.
All ovens comply with IEC 60216-4-1, IEC 60216-4-2, ASTM D5374, and ASTM D5423. Three oven sizes are available (380×400×450mm up to 740×1500×1300mm) to accommodate a wide range of test object sizes.
Compatibility Testing
CCT / Sealed Tube evaluations plus immersion in various environments:
- — Water (tap, salt, or contaminated)
- — Oils — liquid and vapor
- — Refrigerants / gases / vapors
- — Water mists (fog)
Flammability Testing
Both flame and non-flame heat sources per ASTM, IEC, ISO, and UL:
- — Vertical, horizontal, needle flame
- — Hot wire & glow wire ignition
- — Surface flammability — radiant heat
Physical Properties
- — Tensile, flexural, compressive strength
- — Impact strength & deformation under load
- — Water absorption & hardness
Humidity & Condensation
- — 5 chambers, up to 100% RH
- — Visible condensation capability
- — Largest chamber: 1500mm wide
Don't see what you need? Contact us — we develop custom test programs to meet your specific requirements.
Contact UsTests
More than 500 individual tests drawn from ASTM, IEC, ISO, NEMA, IEEE, and UL, among others. The overview below conveys the range of evaluations within ELTEK Labs' capabilities.
Looking for a specific test standard? Contact us for the full list or to discuss your project requirements.
Training
Training from the world experts in electrical insulation, tailored to you. Each session agenda is developed on a per-request basis — your topics, our expertise.
In-Person Workshop
Hands-on coverage with live demonstrations at ELTEK Labs' facility. Comprehensive discussion of your desired topics over one or two days. Includes a 1-hour catered lunch break each day.
Live Virtual Workshop
In-depth exploration of multiple topics in a virtual setting. Thorough discussion with limited pre-recorded demonstrations available by request.
Virtual Focused Seminar
A 45-minute presentation on a specific topic followed by 15 minutes of open Q&A. Ideal for targeted knowledge acquisition on a single subject.
All training sessions are developed to meet your specific needs. Contact us to discuss topics and schedule.
Request TrainingFrequently Asked Questions
Have a question not answered here? We're happy to help.
Contact UsContact Us
ELTEK is the world leader in EIS testing. To request a quote or discuss a project, call us or send a message below.
The world leader in Electrical Insulation Systems (EIS) and Component Compatibility Testing — serving Fortune 500 companies and innovative businesses worldwide since 1987.
